产品特点:
1、喂料、主机及切割均采用变频控制,运转稳定,操作可靠;
2、配备腔体加热/冷却系统,可更好地实现对产品质量的控制;
3、易损件采用耐磨合金材料和独特的加工处理工艺,使用寿命长;
4、可生产超小直径的各种浮性、缓沉性和沉性饲料,成形率高。
主要规格及技术参数:
参数 型号 | 主机功率 (kw) | 供料动力 (kw) | 切割动力 (kw) | 调质动力 (kw) | 产量 (kg/h) |
SPHS65DS | 22 | 0.75 | 1.5 | 1.5 | 150~300 |
SPHS68DS | 30 | 0.75 | 2.2 | 1.5 | 200~400 |
SPHS80DS | 37 | 0.75 | 2.2 | 2.2 | 250~500 |
SPHS85DS | 45 | 0.75 | 2.2 | 2.2 | 350~600 |

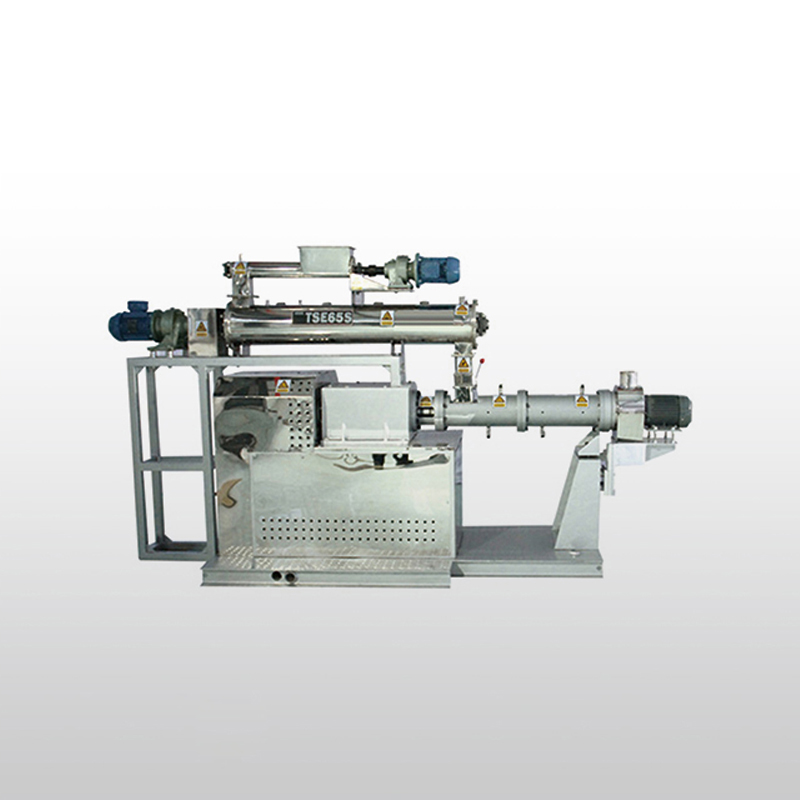

SPHS-DS series twin screw wet extruder
Feature
1.Feeding, main engine and cutting are controlled by variable frequency, stable operation and reliable operation.
2.Equipped with cavity heating / cooling system, better control of product quality can be achieved.
3.The wearing parts are made of advanced wear-resistant alloy material and unique processing technology, with long service life.
4.It can produce all kinds of floating, slow sinking and sinking feed with super small diameter, and the forming rate is high.
Main Technical Parameters
Parameters Model | Main Power(kw) | Feeder Power(kw) | Conditioner Power(kw) | Cutter Power(kw) | Capacity(kg/h) |
SPHS65DS | 22 | 0.75 | 1.5 | 1.5 | 150~300 |
SPHS68DS | 30 | 0.75 | 2.2 | 1.5 | 200~400 |
SPHS80DS | 37 | 0.75 | 2.2 | 2.2 | 250~500 |
SPHS85DS | 45 | 0.75 | 2.2 | 2.2 | 350~600 |
